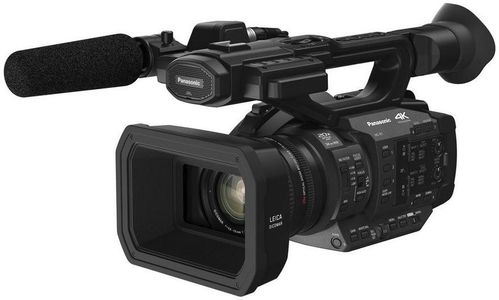

Panasonic® 4K 60p/50p/25p/24p Ultra HD Professional Camcorder

Product Overview

Designed for Professional Recording

The light, compact Panasonic HC-X1 4K camcorder professional supports 4K 24p, UHD 60p/50p, FHD 60p/50p multi-format recording and HD super slow-motion. Plus it includes a wide 24mm angle LEICA DICOMAR 4K Lens 20x zoom.

LEICA DICOMAR 4K Lens

The new high performance LEICA DICOMAR 24mm 4K Lens delivers 24mm* at the wide-angle setting with little distortion. A perfect solution for recording in tight and narrow spaces.

4-Drive Lens System

The HC-X1 comes complete with a 4-Drive Lens System that simultaneously and independently drives 4 lens groups (group 2, iris, group 3, group 4). Lens size and drive range for each of the 4 groups can be efficiently suppressed to optimize image quality and zoom power.

5-Axis HYBRID O.I.S.

By using hand-shake correction that combines the effects of both optical and electronic image stabilization in HD shooting modes, hand-shake in various directions, including roll rotation, is detected and corrected.

20X Optical Zoom

The optical 20X zoom lens covers the range from 24mm wide-angle to 480mm telescopic (35mm film equivalent at 4K 24p). And the lens can quickly zoom from wide-angle to telescopic.

Advanced O.I.S.

With the HC-X1 O.I.S., the correction area has been expanded to approximately 900%. An advantage that provides powerful correction even in unstable shooting situations, and greatly improves correction for small-amplitude hand-shake.

4K 1.0-inch MOS Sensor

Ideal for high-precision, high-speed 4K 60p/50p recording. The effective MOS (approx. 9.46 megapixels in 4K 24p, and approx. 8.79 megapixels in UHD/FHD) offers an appropriate depth of field and excellent balance between image quality and sensitivity. 4K 24p, UHD 60p/50p, FHD 60p/50p multi-format, and HD 120-fps (59.94Hz)/100-fps (50Hz) super slow-motion recording are possible.

Intelligent AF

Precise AF performance is achieved by moving the Micro Drive Focus Unit minutely and quickly. AF can customize by adjusting AF Speed, AF Sensitivity and AF Area to best accommodate the subject type or application.

Dual SD Memory Card Slots

Two SD card slots enable unlimited* relay recording by simply changing SD cards, and simultaneous recording and background recording ensures recording reliability.

Wireless Remote Control from an iPad®

A wireless module (AJ-WM50/AJ-WM30, sold separately) the AG ROP app for iPad provides wireless remote control over camera settings, picture quality adjustment, REC start/stop and menu settings, and lens. Also displays a thumbnail view and preview to check recorded clips on an iPad.

Professional Functions and Controls

Triple Manual Rings - Three manual rings for Zoom, Focus and Iris control.

2-Channel XLR Audio Input Terminal - 2 high-quality audio channels using either the 16-bit linear PCM system (MOV/MP4) or Dolby Digital system (AVCHD).

High-Resolution OLED EVF - A high-resolution OLED display (approx. 1,769,000 dots).

Sliding 3.5-type (inch) Touch-Panel LCD - A retractable touch-LCD can be pulled out of the camera handle and turned 270 degrees.

Others

ND Filters: 1/4, 1/16, 1/64

Gain: select from -3 dB to 24 dB gain for three-position (L/M/H).

AWB Selector: A/B memory and presets (3200/5600/VAR).

HDMI OUT: Outputs images up to 4K 24p and UHD 60p/50p.

VIDEO/AUDIO OUT: Outputs analog signals.

4K/UHD/FHD/SD Multi-Format Recording

Versatile and easy-to-use MOV (QuickTime), MP4 and AVCHD file formats are supported. The variety of recording modes with selectable image quality, frame rate and bit rate settings respond to a wide range of applications, from cinema production to online distribution.

VFR/HD Super-Slow Motion

VFR (variable frame rate) recording can be set in 10 steps from 2 to 60 fps. A super slow-motion effect can be achieved by high-speed HD recording at 120 fps (59.94 Hz) or 100 fps (50 Hz).

UHD/FHD Dual Codec Recording

Record simultaneously into two different formats, Main (UHD/FHD) and Sub (FHD). Sub-recording files can be used for preview, off-line editing and online transmission. FHD (8 Mbps) sub-recording files can be transmitted via mobile networks.

Product Highlights

Advanced Optical Image Stabilizer (4K/UHD/FHD) and 5-Axis Hybrid O.I.S. (FHD)

VFR (2 to 60 fps) /HD Super-Slow Motion (120/100 fps)

Supports 4K, UHD, FHD; 60p/50p/25p/24p

High-performance LEICA DICOMAR 4K Lens 24mm f2.8-F4.5 with optical 20X zoom (24-480mm).

2-channel XLR Audio, Wired/Wireless remote control, triple Manual Rings, user switch, timecode, ND Filter, Live HDMI output.

Simultaneous 4K UHD/FHD dual codec recording to two SD cards.

External microphone pictured not included.
