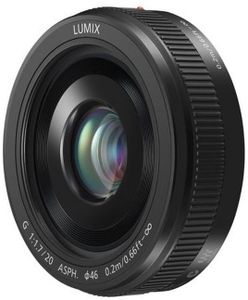

    Panasonic® Black LUMIX G II Lens

    Panasonic Electronics

    Model #:

    H-H020AK

    Model #: H-H020AK
    253084
    Panasonic Electronics
    $99,999.00

    At a Glance

    Product Dimensions 2.48"h x 2.48"w x 1"d

    The LUMIX G 20mm / F1.7 II ASPH is an amazingly sharp compact lens with superb F1.7 brightness. This new LUMIX G 20mm F1.7 II lens is an update to the original LUMIX 20mm F1.7 pancake lens made popular by Micro Four Thirds system photo enthusiasts because of its razor sharpness and compact size.Read More

    Call for Best Price

    Color Finish Name:Black

    ---
    ---

    Get to know this product.

    Product Overview

    Product Overview

    The LUMIX G 20mm / F1.7 II ASPH is an amazingly sharp compact lens with superb F1.7 brightness.

    This new LUMIX G 20mm F1.7 II lens is an update to the original LUMIX 20mm F1.7 pancake lens made popular by Micro Four Thirds system photo enthusiasts because of its razor sharpness and compact size. The new LUMIX G 20mm F1.7 II lens system is also designed to work with the Micro Four Thirds lens standard and is compatible with Panasonic LUMIX G digital cameras.

    A new metal finish replaces the original 20mm lenses resin body, and combines with a durable metal mount for a sophisticated premium feel.

    Optically the new The LUMIX G 20mm / F1.7 II lens offers the same great performance with two aspherical lenses and a multi-coated lens surface for reduced ghosts and flaring.

    High Speed F1.7 Compact Single Focal Length Lens

    Allowing a beautiful soft focus for photos to be even more impressive

    2 aspherical lenses for a superb optical performance

    Product Highlights

    Extremely bright F1.7 optical performance

    Ultra compact durable metal body

    Durable Micro Four Thirds metal mount

    Two aspherical lenses

    Multi-coated lens elements reduce ghosts and flaring

    Useful Documents
    Update Guide
    Manual
    Specification Sheet
    Warranty
    Specifications

    General Specs

    ColorBlack
    Depth (in.)1
    Width (in.)2.48
    Height (in.)2.48
    Color Finish NameBlack
    Lens Focal Length20mm
    Product Weight (lbs.)0.19

    Features

    Lens Construction7 elements in 5 groups (2 Aspherical lenses)
    MountMicro Four Thirds mount
    Focal Lengthf=20mm (35mm camera equivalent 40mm)
    Aperture Type7 diaphragm blades / Circular aperture diaphragm
    ApertureF1.7
    Minimum ApertureF16
    Closest Focusing Distance0.2m / 0.66ft
    Maximum magnificationApprox. 0.13x / 0.25x (35mm camera equivalent)

    General

    Diagonal Angle of View57°
    Filter Sizef46mm / 1.81 in
    Max. Diameterf63mm / 2.48 in
    Overall LengthApprox. 25.5mm / 1.00 in (from the tip of the lens to the base side of the lens mount)
    WeightApprox. 87g / 3.07oz (excluding lens cap and lens rear cap)

    Further Specifications

    Standard AccessoriesLens Cap, Lens Rear Cap, Lens Storage Bag
    ColorBlack

    WarningProposition 65 Warning for California Residents
