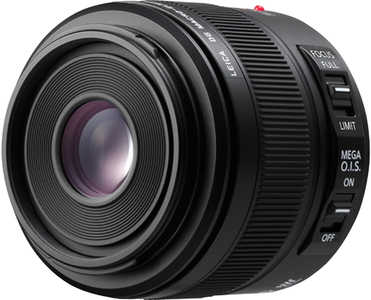

    Panasonic® LUMIX G LEICA DG MACRO-ELMAR Lens


    Model #:

    H-ES045

    Model #: H-ES045
    254173
    Panasonic Electronics
    $99,999.00

    At a Glance

    Product Dimensions 4.84"h x 4.03"w x 4.03"d

    This F2.8 45mm (35mm camera equivalent: 90mm) macro lens with built-in image stabilizer lets you take close-ups that capture your subjects in their actual size. It also greatly boosts mobility by serving as a medium-length telephoto lens for portraits, telephoto snapshots and landscapes.Read More

    Call for Best Price

    Get to know this product.

    Product Overview

    Product Overview

    LEICA DG MACRO-ELMARIT 45mm/F2.8 ASPH./MEGA O.I.S.

    This F2.8 45mm (35mm camera equivalent: 90mm) macro lens with built-in image stabilizer lets you take close-ups that capture your subjects in their actual size. It also greatly boosts mobility by serving as a medium-length telephoto lens for portraits, telephoto snapshots and landscapes.

    A superb image quality with minimum distortion, chromatic aberrations as well as ghosts and flares that passes a stringent Leica standard

    An aspherical lens and an ED lens for a superb optical performance

    An inner focus system of three groups of floating structure which enables excellent resolution and contrast without changing its overall length from full life-size magnification to infinity.

    MEGA O.I.S. (Optical Image Stabilizer) - Panasonic's advanced hand-shake correction technology

    The closest focusing distance can be instantly changed to 15cm or 50cm (0.5ft to 1.64ft) with the switch on the lens barrel

    Circular aperture diaphragm

    Multi-coated lens elements minimize ghosts and flare

    Durable metal mount

    Product Highlights

    Micro Four Thirds Mount

    90mm Equivalent In 35mm Format

    Capture Subjects in Actual 1:1 Size

    Minimum Focus Distance 0.5'

    Useful Documents
    Specifications

    General Specs

    Product Weight (lbs.)0.50
    Depth (in.)4.03
    Width (in.)4.03
    Height (in.)4.84
    Lens Focal Length45mm

    General

    Lens Construction14 elements in 10 groups (1 Aspherical lens, 1 ED lens)
    MountMicro Four Thirds mount
    Optical Image StabilizerYes
    Focal Lengthf=45mm (35mm camera equivalent 90mm)
    Aperture Type7 diaphragm blades / Circular aperture diaphragm
    Aperture RangeF2.8
    Minimum ApertureF22
    Closest Focusing Distance0.15m / 0.5ft0.5m / 1.64ft
    Maximum MagnificationApprox. 1.0x / 2.0x (35mm camera equivalent)
    Diagonal Angle of View27°
    Filter Sizef46mm / 1.81 in
    Max. Diameterf63mm / 2.48 in
    Overall LengthApprox. 62.5mm / 2.46 in (from the tip of the lens to the base side of the lens mount)
    WeightApprox. 0.50 lbs
    Standard AccessoriesLens Cap, Lens Hood, Lens Rear Cap, Lens Storage Bag
    Recommended Humidity40%RH to 60%RH
    Dimensions (H x W x D)4.84'' x 4.03'' x 4.03''
    Shipping Weight2.3 lbs
